Laminate Sheets

Product Definition:

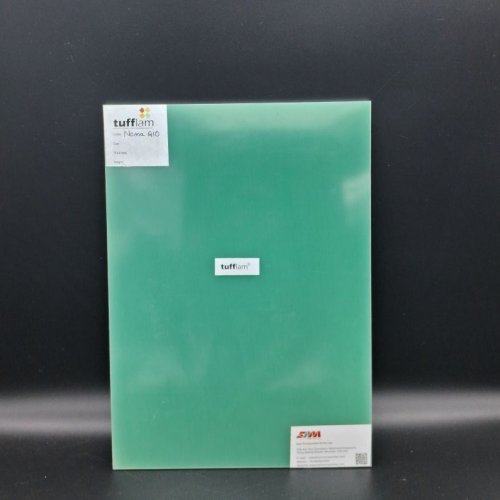

Tufflam G10 epoxy glass cloth laminate (white/yellow/black) series is a rigid plate-like insulation material made of hot pressing of imported alkali-free glass fiber cloth impregnated with imported epoxy ester resin, and adding imported flame retardants, adhesives, etc.

Tufflam G10 epoxy glass fiber cloth lamination sheet is a rigid insulating lamination sheet made of composed imported alkali-free glass fiber cloth ,impregnated with imported high quality epoxy resin,added the imported fire retardant and cementing compound,it is a rigid plate-like insulating material under high temperature and high pressure.

Tufflam G10 black antistatic laminate is an insulating material specially added with anti-static material, and its surface resistivity is < 109, which achieves the function of absorbing electrostatic charge. Tufflam G10 black anti-static laminated sheet was added specical anti-static material to meet the absorb action for electrostic charge of the insulating material surface resistivity ＜＜109

Advantages

• Excellent Voltage Resistance (electric strength ≥≥16KV/mm)
• Excellent Water Resistance (Water absorption ≤≤ 0.2%)
• Excellent Heat Resistance (Heat resistance above 155 °C) Excellent Heat Resistance (Class F)
• Excellent thermal impact resistance (-273°C to +155°C) Excellent thermal impact resistance (Temp.Index: -273°C to +155°C)
• Excellent mechanical process-ability & high degree of automation processing
• Excellent chemical resistance & radiation resistance
• RoHS, Reach certified products

Applications

Tufflam G10 laminate is widely used in various switchgear safety partitions, arc extinguishing hoods, arc extinguishing cylinders, arc extinguishing sheets, arc separators, terminal boards, phase insulation, bottom partitions, jump plates, contact support parts; Structural supports for switches and transformers, busbar cleats, etc. Motor armature parts, movable cover plates, slot wedges, fixed mats, thin gaskets, carbon brush holders, etc. In recent years, it has been widely used in consumer electronics, flat panel display, and optoelectronic industries.

Tufflam G10 laminated sheets are widely used in every kind of switch cubicle such as bursting disk, arc extinguishing chamber, arcing cylinder, arcing piece, flash barrier, wiring board, terminal plate insulating supports; strut parts and bus bar supports in switchgear & transformer; the armature parts of electrical machine such as cover plate, slot wedge, stator , gasket , shims ,carbon brush etc. The epoxy glass fiber laminated sheet series are used much more extensively in consumer electronics, panel display and photovoltaic in recent years

Tufflam G10 black anti-static laminate is widely used in consumer electronics, flat panel display, and optoelectronic industry in fixture board, production platform, etc.

Tufflam G10 black anti-static laminated sheets are widely used in consumer electronics, panel display and the fixture board in photovoltaic , production platform etc.

Typical Applications:

•  Track Resistance
•  Terminal Boards and Tag Strips
•  Precision Machined Parts
•  Pipeline Insulation

•  Mechanical Applications
•  Insulating Handles
•  Insulating Bushes Spacers Sleeves
•  High Voltage Insulation
